结构与特点:
本产品是在圆块孔式石墨换热器的基础上改造而来,结构及原理和列管式石墨降膜吸收器相似,仅其中吸收、冷却、分离部分由圆块孔式石墨冷凝器组成。圆块孔式石墨降膜吸收器除具有列管式降膜吸收器的特点外,还具有结构强度大、抗热冲击性好、传质传热效率高、检修方便的优点,是一种性能优越的气体吸收设备。设计参数:
设计压力:0.6 MPa
设计温度:-20~165 ℃
换热面积:10~800 ㎡
执行标准:

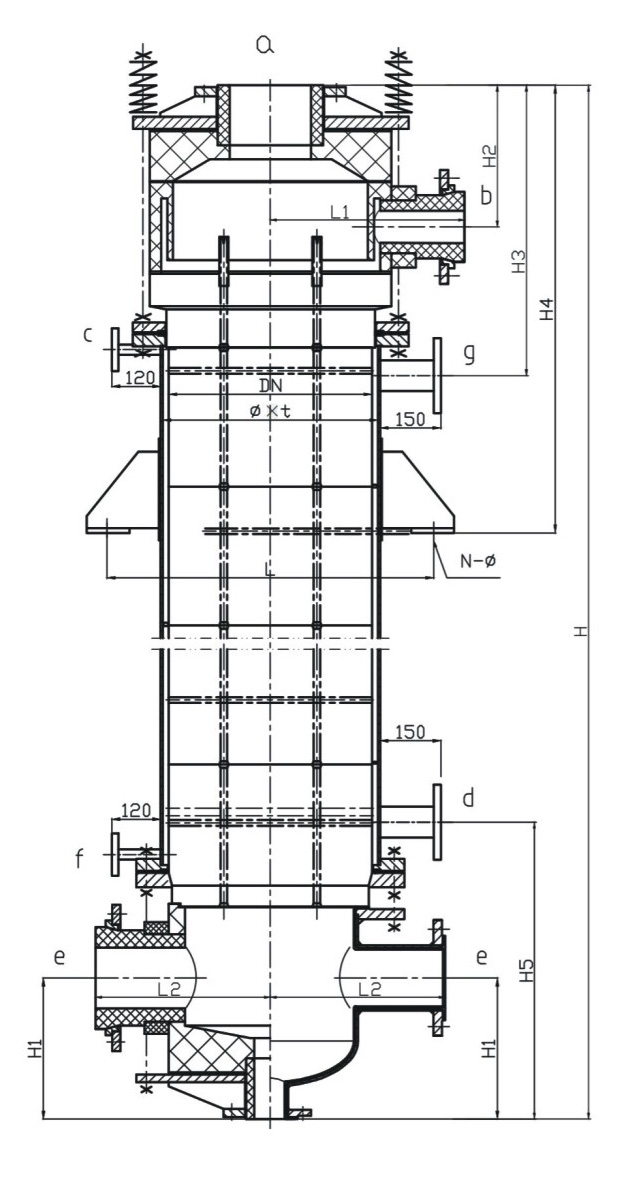

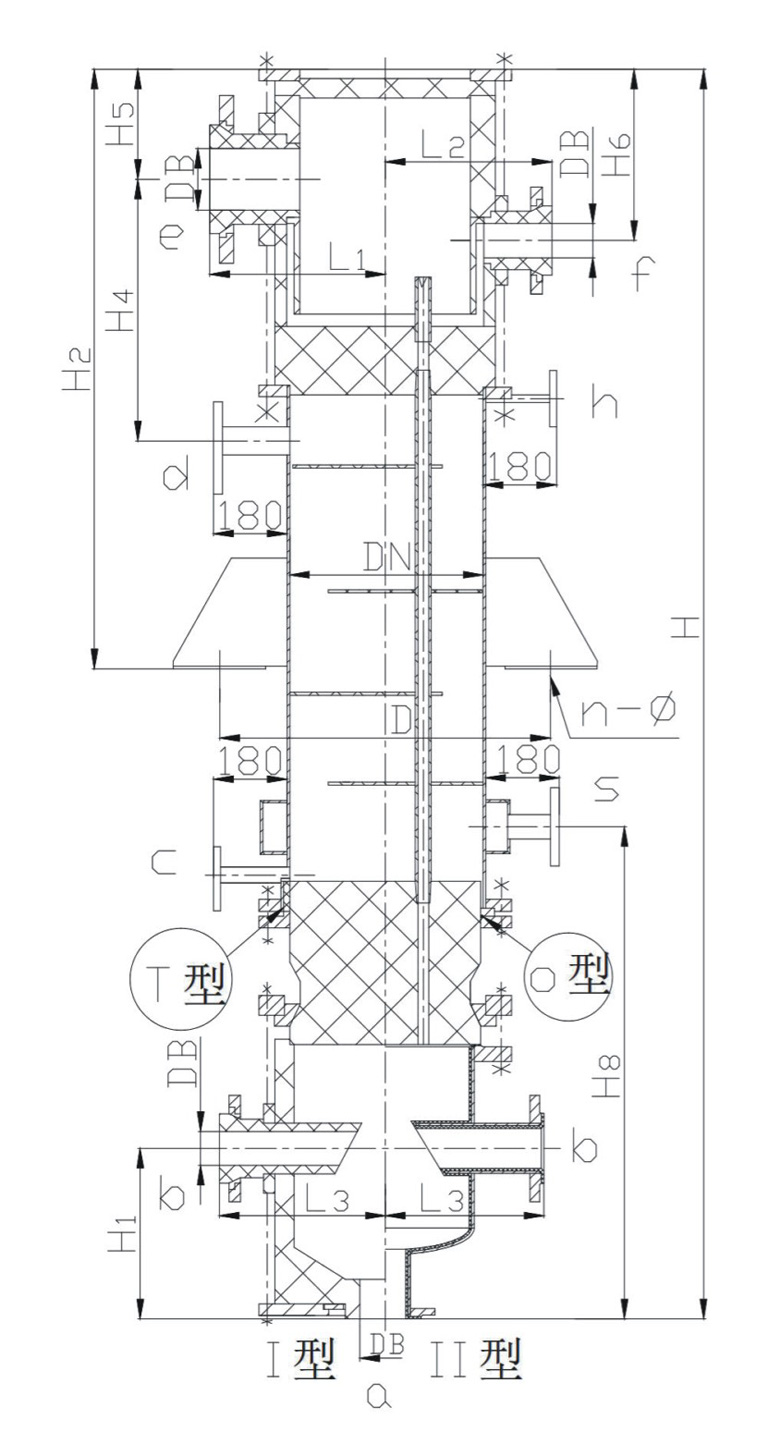

XJ-2016-02![](/static/upload/image/190102/1-1Z102142955246.jpg)
![](/static/upload/image/190102/1-1Z1021641534E.jpg)

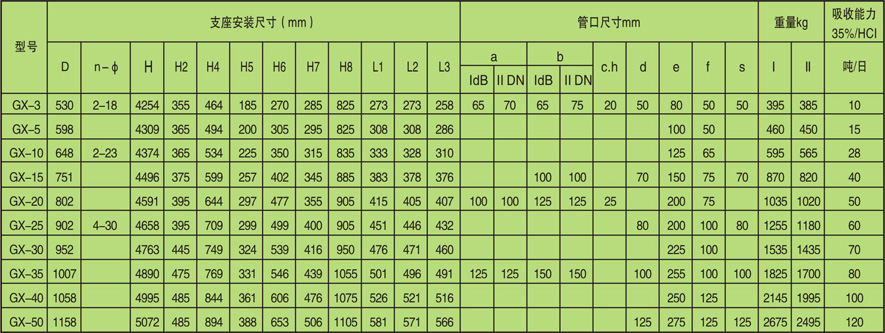

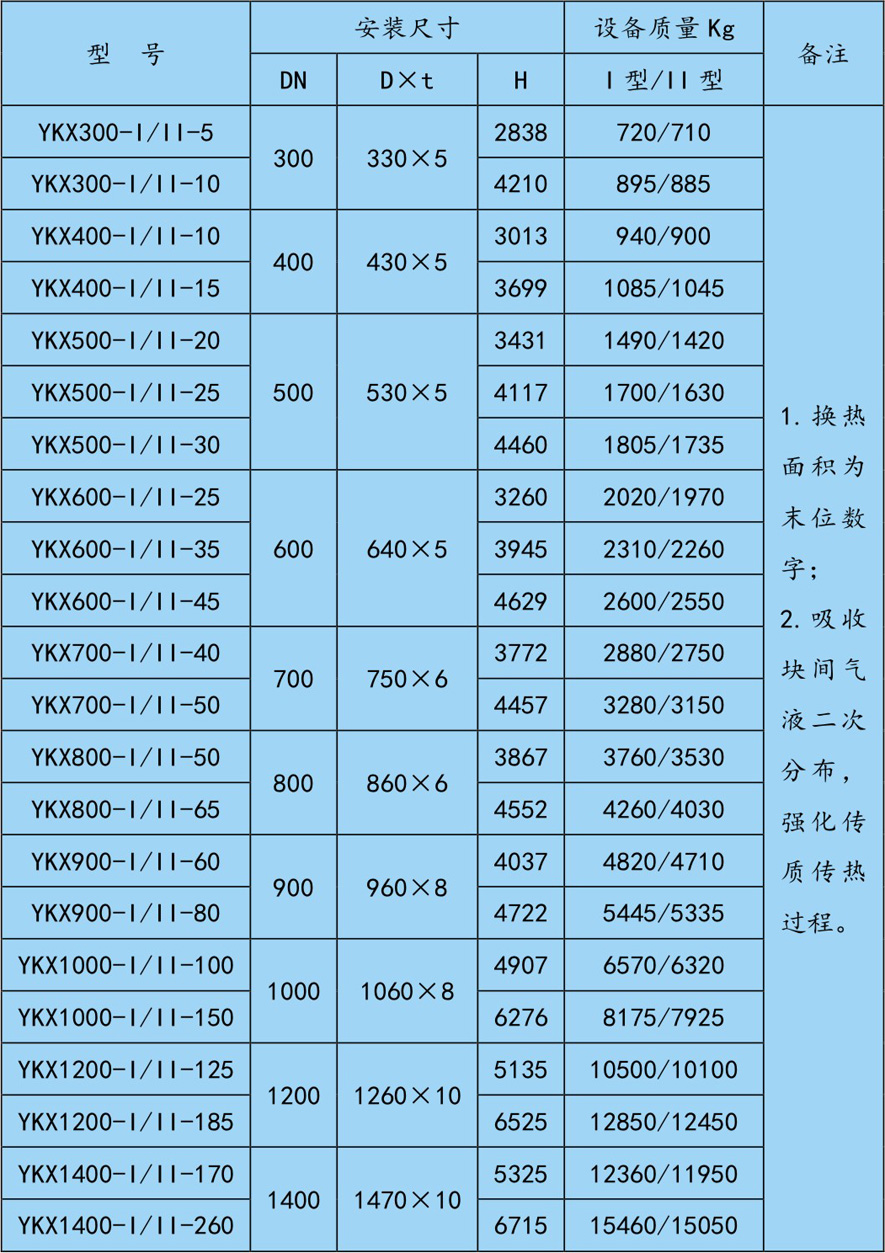

系列安装尺寸表:
![](/static/upload/image/190102/1-1Z102143006136.jpg)
![](/static/upload/image/190102/1-1Z102164300149.jpg)
设备成品实景:
![石墨冷凝器](/static/upload/image/210412/1-210412162413502.jpg)
![石墨冷凝器](/static/upload/image/210412/1-210412162423G8.jpg)
设备发货实景:
![](/static/upload/image/191219/1-19121Z932203I.jpg)
![](/static/upload/image/191219/1-19121Z9322LE.jpg)
